Full Automatic CNC H Beam Drilling Machine Line High Efficiency In Steel Structure Fabrication

Brand Name : Auten

Model Number : SWZ700

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Supply Ability : 100 sets per year

Delivery Time : 60 days

Packaging Details : wooden case

Price : Negotiable

Functions : Drilling holes on H beam, box beam

H-beams Max. (web width×flange height) : 700x400mm

Vertical drilling diameter : Φ12~Φ33.5

Rotation speed : 180~560 rpm

CNC or not : CNC

Feeding speed(mm/min) : 200~300

Contact Now

Full Automatic CNC H Beam Drilling Machine Line High Efficiency In Steel Structure Fabrication

Applicable industry:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.

Product feature:
1. Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.

Product Basic Parameter:

Model SWZ700
H-beams Max. (web height × flange width) (mm) 700x400
Min. (web height × flange width) (mm) 100x50
Min. length of workpiece (mm) 1800
Max. weight of workpiece (kg) 5000
Drilling dia. (mm) Φ12.5~Φ30
Feeding speed(mm/min) 20~300
No. of spindle One spindle on each of three sides (top,left,right) Total: 3 spindles
Rotation speed (stepless speed adjustment)(rpm) 180~560
Feeding movement speed (mm/min) 20~300
Max. feeding stroke (mm) 280
Power of each spindle (kW) 4
No. of CNC axis 4
Stroke of left/right spindles (Above vertical base-level) (mm) 20~420
Stroke of top spindle (Beyond horizontal base-level) (mm) 30~630
Morse taper 2#, 3#
Total power (kW) 27
Feeding type NC carriage feeding, 20-300mm/min
Overall dimensions (L×W×H) (mm) 3600x1500x2500
Total weight (kg) ≈7000

Full Automatic CNC H Beam Drilling Machine Line High Efficiency In Steel Structure Fabrication

Full Automatic CNC H Beam Drilling Machine Line High Efficiency In Steel Structure Fabrication

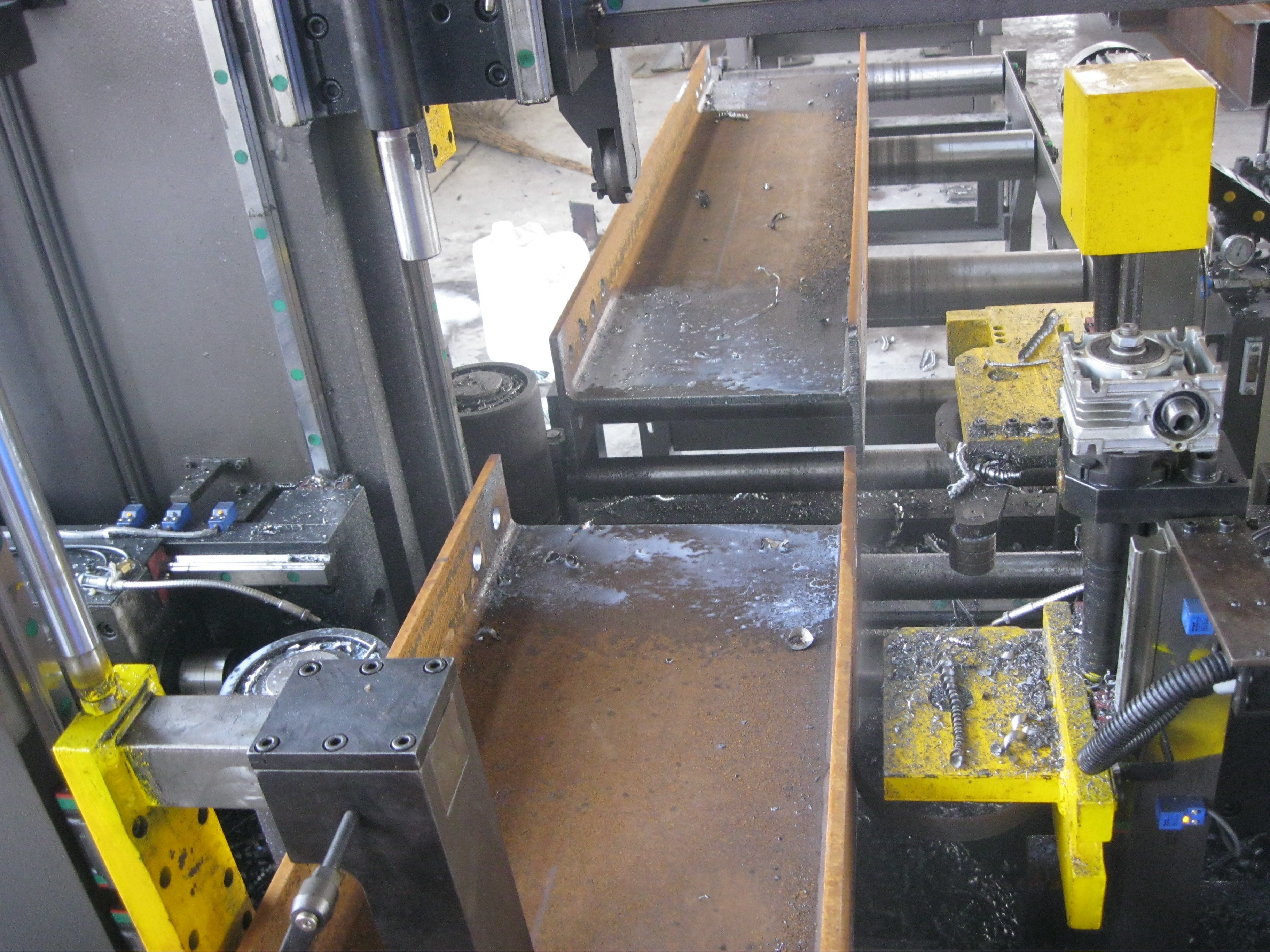

Drilling Heads

Full Automatic CNC H Beam Drilling Machine Line High Efficiency In Steel Structure Fabrication

Workpieces
